Studio 520C

28.99
109.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Features

          25 – 150 watts suggested amplifier power range

          JBL engineers have designed the Studio 520C centre-channel loudspeaker to deliver robust sound from a compatible AVR (audio/video receiver) or 25- to 150-watt power amplifier, whether you are using it as a stand-alone unit or as the centerpiece of a surround-sound system.

          Dual 4" (100mm) PolyPlas woofer cones

          Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 520C centre-channel loudspeaker delivers accurate low-frequency sounds from a pair of 4-inch (100-millimetre) ribbed PolyPlas woofers. The ribs improve strength while reducing distortion. The result is rich, articulate bass.

          Symmetrical Field Geometry (SFG) magnet assembly

          Thanks to a heavy-duty Symmetrical Field Geometry (SFG) magnet assembly, the Studio 520C centre-channel loudspeaker’s dual low-frequency woofers deliver highly focused bass. The result is pristine, articulate sound.

          Specifications and Support

          Description

          Dimensionally accurate centre-channel sound.

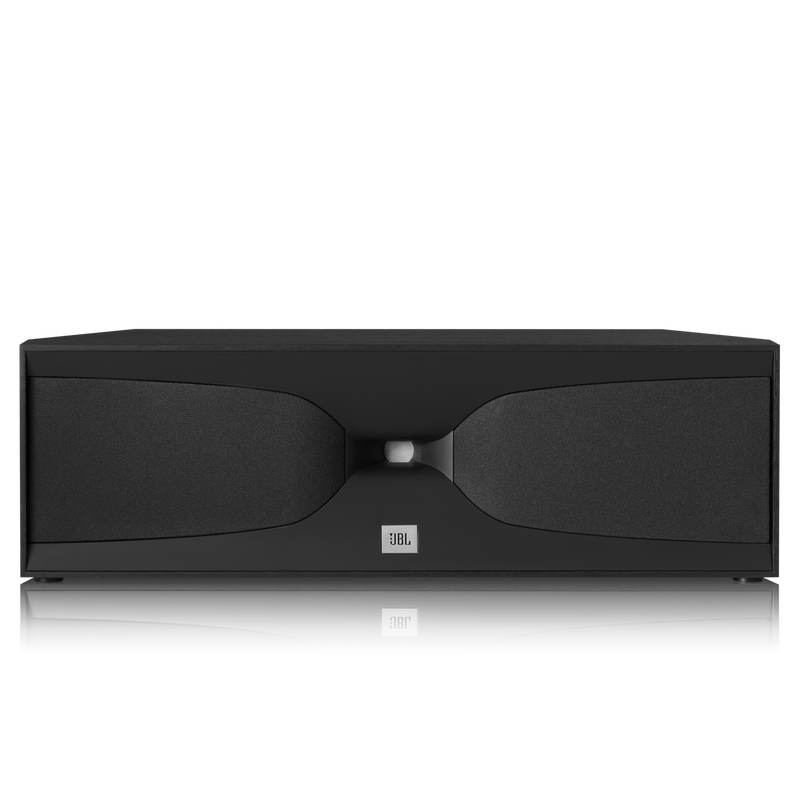

          A truly enveloping theatre-quality surround-sound experience begins with the centre channel. The Studio 520C centre-channel loudspeaker raises your home system to the next level with the kind of advanced technology that JBL® engineers developed for professional audio systems. The Studio 520C features a pair of 4-inch (100-millimetre) low-frequency woofers and a high-frequency compression driver surrounded by a glass-filled Bi-Radial® horn, a combination that delivers crisp, focused, dimensionally accurate sound. Using specially developed materials – including a ribbed PolyPlas™ cone and a Symmetrical Field Geometry™ (SFG) magnet assembly for the woofers – the Studio 520C delivers powerful and focused bass sound. A compression tweeter housed within the same type of Bi-Radial horn that JBL engineers developed for concert sound systems delivers high frequencies that are equally distinct and precisely aimed.

          General Specifications

          Type
          Two-way dual-woofer, center-channel
          Finish
          Black

          Audio Specifications

          Maximum Recommended Amplifier Power
          150W
          Frequency Response
          60Hz-40kHz
          Crossover Frequencies
          1.5kHz
          Nominal Impedance
          6 ohms
          Sensitivity
          (2.83V/1m) 88dB

          Speaker Specifications

          High-Frequncy Transducer
          1" (25mm) compression driver with neodyminium magnet and one-piece Teonex diaphragm on a glass-filled ABS Bi-Radial horn, magnetically shielded
          Low-Frequency Transducer
          Two 4" (100mm) PolyPlas cones with Symmetrical Field Geometry magnet structures, cast frames and rubber surrounds, magnetically shielded

          Dimensions

          Height (mm)
          172
          Depth (in)
          6-5/8
          Height (in)
          6-3/4
          Weight (kg)
          7.5
          Width ( in)
          21-7/8
          Weight (lb)
          16.6
          Depth (mm)
          168
          Width (mm)
          555

          Control and Connection Specifications

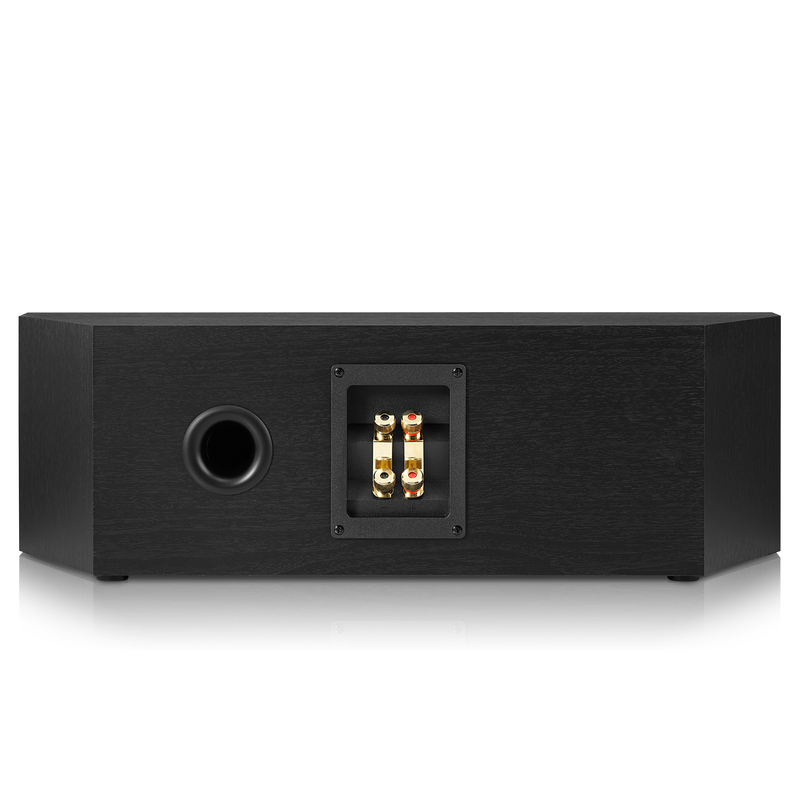

          Connector Type
          Dual gold-plated binding posts (bi-wire capable)
