          Description

          Features

          25 – 200 watts suggested amplifier power range

          JBL engineers have designed the Studio 580 floorstanding loudspeaker to deliver robust, enveloping sound from a compatible AVR (audio/video receiver) or 25- to 200-watt power amplifier, whether you are using the Studio 580 as a stand-alone unit or as part of a surround-sound system.

          Dual 6-1/2" (165mm) ribbed PolyPlas woofer cones

          Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 580 floorstanding loudspeaker delivers accurate low-frequency sounds from a pair of 6-1/2-inch (165-millimeter) ribbed PolyPlas woofers. The ribs improve strength while reducing distortion. The result is rich, powerful, articulate bass.

          Symmetrical Field Geometry (SFG) magnet assembly

          Thanks to a heavy-duty magnet Symmetrical Field Geometry (SFG) assembly, the JBL Studio 580 floorstanding loudspeaker’s pair of low-frequency woofers delivers highly focused bass. The result is pristine, articulate sound that create an added sense of ambience.

          Specifications and Support

          Description

          Acoustically accurate floorstanding loudspeaker.

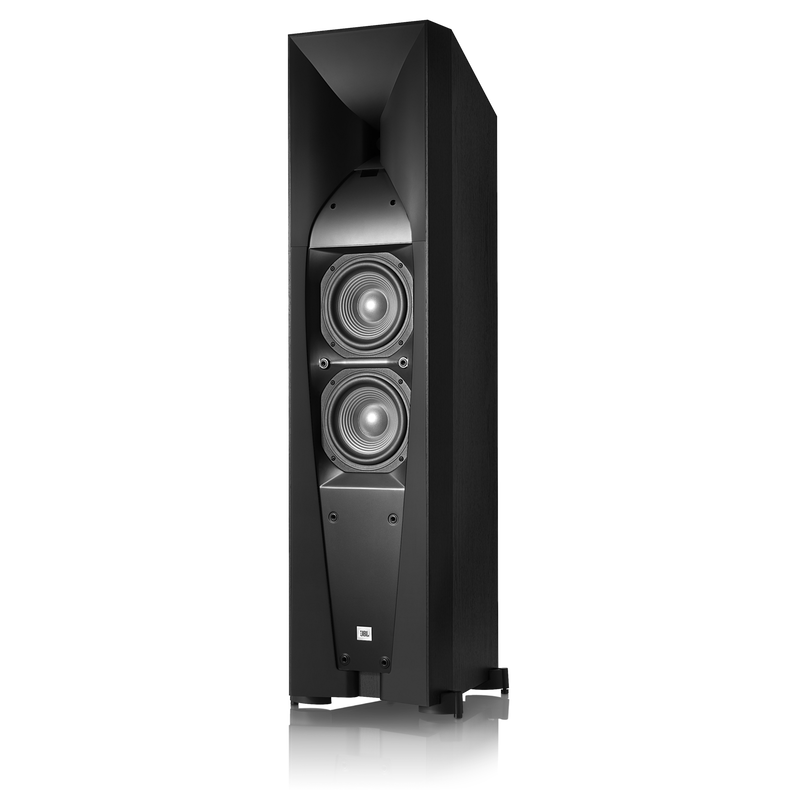

          The JBL® Studio 580 floorstanding loudspeaker brings professional-quality sound to the home experience. The Studio 580 uses the technology developed for JBL pro-audio loudspeakers to deliver accurate and powerful sound to your living room. The Studio 580 speaker is a perfect complement to other members of the Studio 5 Series, including the Studio 530 bookshelf and the Studio 520C center-channel loudspeakers. The Studio 580 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the technology used in JBL concert sound systems – to deliver concise, sustained high frequencies. A pair of 6-1/2-inch (165-millimeter) PolyPlas™ cones with Symmetrical Field Geometry™ (SFG) magnet assemblies handle low frequencies.

          General Specifications

          Finish
          Black
          Type
          Two-way dual-woofer, floorstanding

          Audio Specifications

          Nominal Impedance
          6 ohms
          Sensitivity
          (2.83V@1m) 90dB
          Crossover Frequencies
          1.5kHz
          Frequency Response
          (-6dB) 40Hz-40kHz

          Speaker Specifications

          High-Frequncy Transducer
          1" (25mm) compression driver with neodymium magnet and one-piece Teonex diaphragm on a glass-filled ABS Bi-Radial horn, magnetically shielded
          Low-Frequency Transducer
          Two 6-1/2" (165mm) PolyPlas cones with Symmetrical Field Geometry magnet structures, cast frames and rubber surrounds, magnetically shielded

          Dimensions

          Depth (mm)
          348
          Weight (lb)
          49
          Width ( in)
          9-7/8
          Weight (kg)
          22.2
          Height (mm)
          1069
          Height (in)
          42-1/16
          Depth (in)
          13-3/4
          Width (mm)
          250

          Control and Connection Specifications

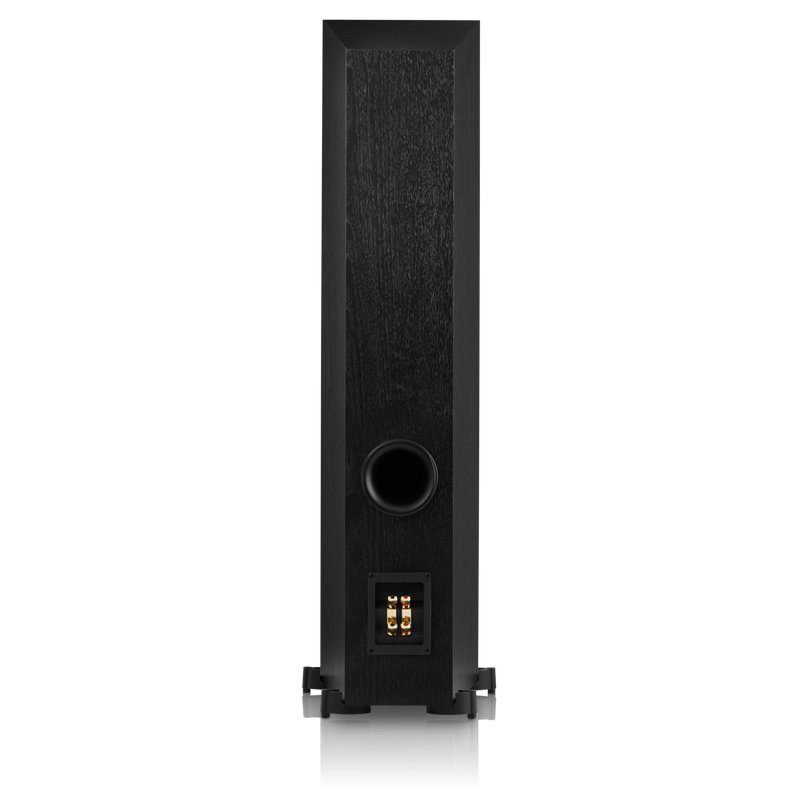

          Connector Type
          Dual gold-plated binding posts (bi-wire capable)
